PRODUCT

1500A 12V rectifier

High frequency pulse current output.

Classification:

Rectifier

+86 15854902218

allen@wbrectifier.com

Quote

Introduction

Product Advantage

1) Small, light and high efficiency.

2) High frequency pulse current output.

3) Flexible use, simple operation.

4) Complete protection function.

5) Extra function:0-5v,4-20ma,0-10v,rs485,PLC interface,timer,ampere hour meter,slow start,touch screen.

Follow ISO 9001 quality standard,CE&SGS certificate.

Product Advantage

Wenbo Rectifier is widely used in plating gold,silver,zinc,nickel,copper,chrome, anodizing, electrolysis,Electrophoresis…and win high reputation among our customer. Several innovative technologies obtain national patents and users worldwide.

Product Parameters

Input Voltage	Three Phase AC380V±20%, 50Hz
Output Voltage	0-12V
Output Current	0-1500A
Output Mode	Constant Voltage, Constant Current, Convertible
Control Mode	Remote Control
Output Display	Digital Meter, Current Display is Accurate to 1A

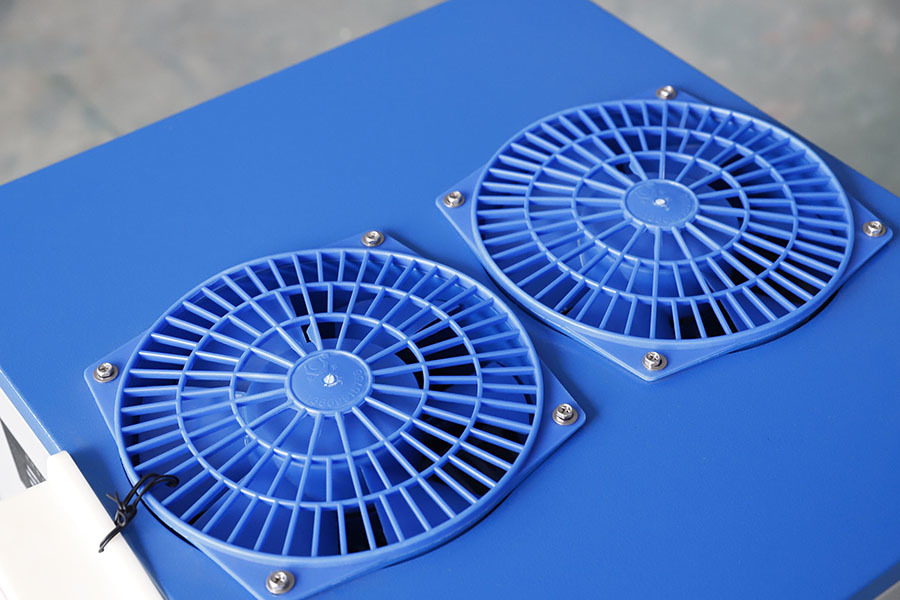

Cooling Mode	Water Cooling
Power Factor	≥0.95
Efficiency	≥88%
Harmonic Interference	Has Low Pollution to Power Grid and can be Eliminated Easily
Protected Mode	Default Phase, Under Voltage,Over Voltage, Short Circuit, Over Current, Overheating
Outside Dimension	144×60×140cm
Weight	400kg

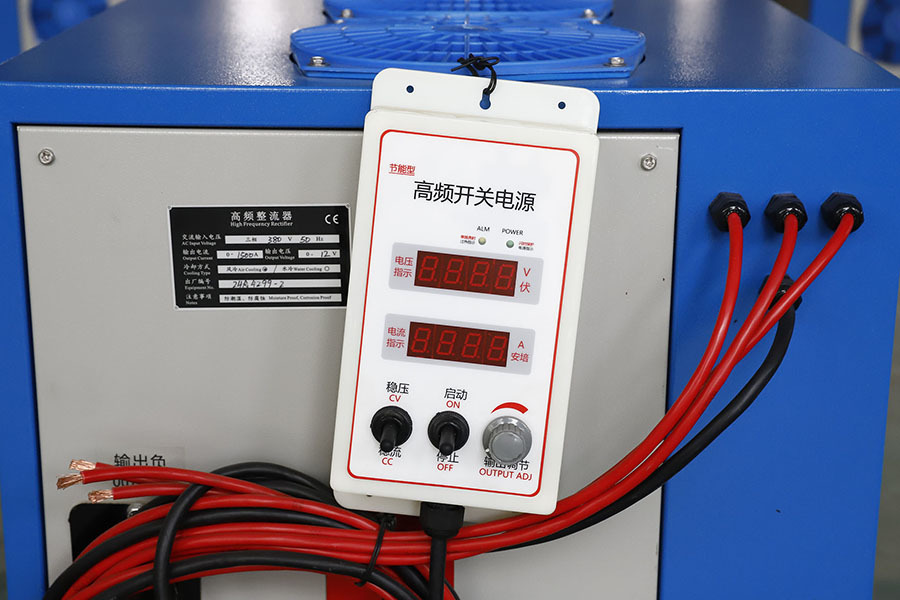

Control Panel	Output Voltage, Output Current, Voltage Stability Control, Current Stability Control, Remote Control

Buying Guides

We are highly appreciate if you can provide the following details.

1.The input voltage in your country/district is how many volts?220V?380v?Or other?Single-phase or three-phase?The frequency is 50HZ or 60HZ?

2.What is the output voltage in volts? What is the output current in amperes?

3.Air or water cooling model?

4.Your application with the rectifier?You will use the rectifier for what usage?

5.Total Quantity

Key words:

1500A 12V rectifier

Video

Closed

Product video

Closed

Production line

Closed

Product video display

Closed

Video Display

Customer

Factory Tour

Factory Appearance

FAQ

How can I carry out my work if I plan to set up a new plating line?

It would be better if we could communicate with your chemical liquid supplier on the process details first. Besides, professional engineer is also important for your project.

What's the lead time for one project?

It usually would take about 15-30days for production and the time is based on specific projects.

What is the necessary information you need for design?

The plating prosess you have had, The capacity of your per products, The material, weight, size, and surface area of your per product, The thickness of plating layer, Your working hours per day, Type of salt spray test and time, Workshop dimension and so on.

We need plating machine for ×××, could you send me a quotation?

Because plating machine is always customized for different products, we'd like to send you quotation and make the design for you based on knowing detailed information from you first.
